ELLIPTICAL WIDE ANGLE LED LAMP

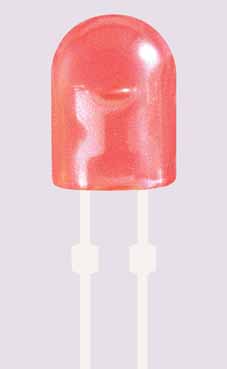

		3.7mm x 5.2mm Elliptical Wide Angle LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Type	at IF=20mA		Viewing Angle (2θ1/2)
		Material	λd(nm)		VF(V)Typ	lv(mcd)Typ
	AL-V4K3AYT	AlGaInP	590	Color Trans.	2.0-2.4	550	110°/40°
	AL-V4K3ART	AlGaInP	625			500

		4.2mm x 4.8mm Elliptical Wide Angle LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Type	at IF=20mA		Viewing Angle (2θ 1/2)
		Material	λd(nm)		VF(V)Typ	lv(mcd)Typ
	AL-V5K3AYT	AlGaInP	590	Color Trans.	2.0-2.4	900	50°/20°
	AL-V5K3ART	AlGaInP	625			800

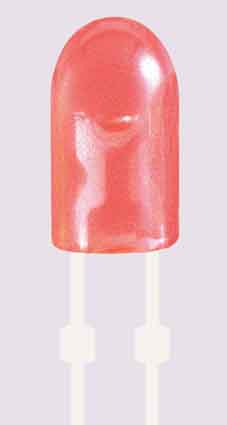

		4.6mm x 5.2mm Elliptical Wide Angle LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Type		at IF=20mA		Viewing Angle (2θ 1/2)
		Material	λd(nm)			VF(V)Typ	lv(mcd)Typ
	AL-V7K3AYT	AlGaInP	590	Color Trans.		2.0-2.4	700	70°/30°
	AL-V7K3ART	AlGaInP	625				600
