BA15D BASE LED BULB

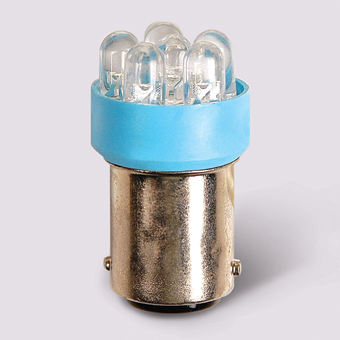

  6 LAMPS (X5) LED BULB

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length fd(nm)
Base
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(cd)
Polarity
Min.
Typ.

InGaN
470
BA15D
12
30
12
18
AC/DC

AB-65B5-24V-BA15D

24
20
10
15

InGaN
525
12
30
30
40
AC/DC
24
20
25
35

AlGaInP
590
12
30
30
45
AC/DC
24
20
25
40

AlGaInP
630
12
30
30
40
AC/DC
24
20
25
35

InGaN
X:0.31
Y:0.32
12
30
15
20
AC/DC
24
20
10

15

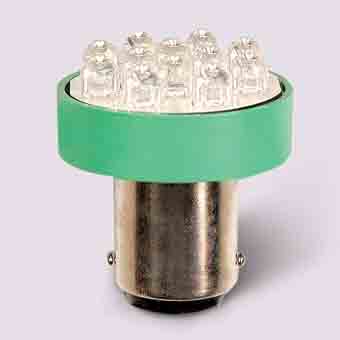

12 LAMPS (X4.6) LED BULB


Emitted Color
Part Number
AB-xxxx
Material
Wave
length
fd(nm)
Base
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Min.
Typ.

InGaN
470
BA15D
12
65
6500
8000
AC/DC

AB-12AB3D-24V0-B20-0

24
65
5500
7000

InGaN
525
12
65
6000
7500
AC/DC
24
65
5000
6500

AlGaInP
590
12
65
9500
11000
AC/DC
24
65
8500
10000

AlGaInP
630
12
65
9500
11000
AC/DC
24
65
9000
10000

InGaN
X:0.31
Y:0.32
12
65
4500
6500
AC/DC
24
65
3500
5500

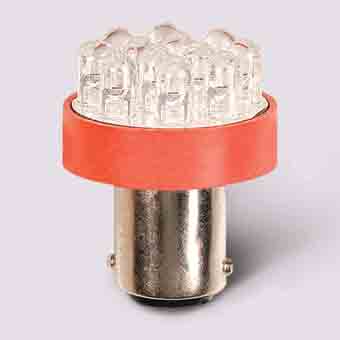

  12 LAMPS (X5) LED BULB

Emitted Color.
Part Number
AB-xxxx
Material
Wave
Length fd(nm)
Base
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(cd)
Polarity
Min.
Typ.

InGaN
470
BA15D
12
65
20
30
AC/DC
24
65
15
25

InGaN
525
12
65
20
30
AC/DC
24
65
15
25

AlGaInP
590
12
65
70
95
AC/DC
24
65
65
80


AB-125TRA-12V0-B20-0

AlGaInP
630
12
65
75
95
AC/DC
24
65
65
85

InGaN
X:0.31

Y:0.32
12
65
20
35
AC/DC
24
65
15
30
