CHINA PATENT NO.453719
SINGLE LAMP LED BULB

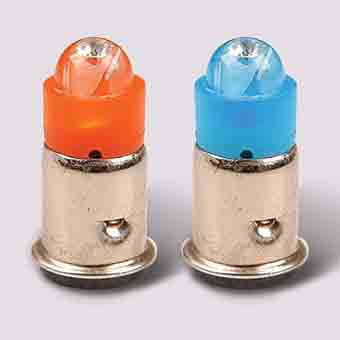

MIDGET FLANGED BASE SERIES
MF BASE
Emitted Color
Part Number
AB-xxxx
Material
Wave
Length £fd(nm)
Bases
Model
Operate Voltage(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Min.
Typ.
AB-46B5-6VD-MF
InGaN
470
MF
6
20
300
400
DC
AB-46B5-12VD-MF
12
20
AB-46B5-24VD-MF
24
15
230
300
AB-46G1-6VD-MF
InGaN
525
6
20
390
520
DC
AB-46G1-12VD-MF
12
20
400
530
AB-46G1-24VD-MF
24
15
270
360
AB-46TY-6VD-MF
AlGaInP
590
6
20
760
1000
DC
AB-46TY-12VD-MF
12
20
700
900
AB-46TY-24VD-MF
24
15
430
570
AB-46TR-6VD-MF
AlGaInP
630
6
20
760
1000
DC
AB-46TR-12VD-MF
12
20
700
900
AB-46TR-24VD-MF
24
15
430
570
AB-46W3-6VD-MF
InGaN
Chromaticity
Coordinates
X:0.31
Y:0.32
6
20
500
600
DC
AB-46W3-12VD-MF
12
20
AB-46W3-24VD-MF
24
15
370
480

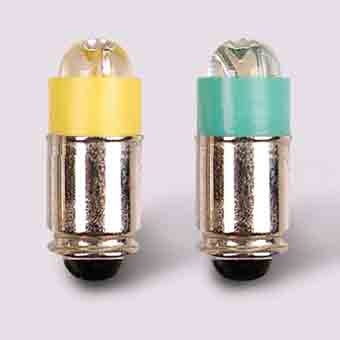

MIDGET GROOVED BASE SERIES
MG BASE
Emitted Color
Part Number
AB-xxxx
Material
Wave
Length £fd(nm)
Bases
Model
Operate Voltage(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Min.
Typ.
AB-46B5-6VD-MG
InGaN
470
MG
6
20
300
400
DC
AB-46B5-12VD-MG
12
20
AB-46B5-24VD-MG
24
15
230
300
AB-46G1-6VD-MG
InGaN
525
6
20
390
520
DC
AB-46G1-12VD-MG
12
20
400
530
AB-46G1-24VD-MG
24
15
270
360
AB-46TY-6VD-MG
AlGaInP
590
6
20
760
1000
DC
AB-46TY-12VD-MG
12
20
700
900
AB-46TY-24VD-MG
24
15
430
570
AB-46TR-6VD-MG
AlGaInP
630
6
20
760
1000
DC
AB-46TR-12VD-MG
12
20
700
900
AB-46TR-24VD-MG
24
15
430
570
AB-46W3-6VD-MG
InGaN
Chromaticity
Coordinates
X:0.31
Y:0.32
6
20
500
600
DC
AB-46W3-12VD-MG
12
20
AB-46W3-24VD-MG
24
15
370
480
All rights reserved please not copy renewal date 98-3-2
SINGLE LAMP LED BULB
