31 / 36 / 41 mm FESTOON BULB SERIES

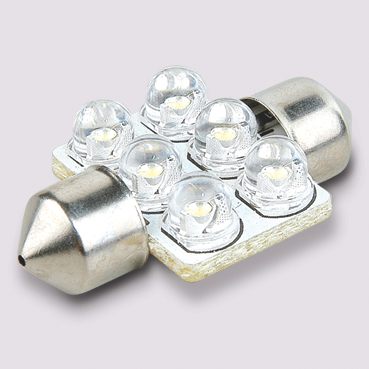

  31mm FESTOON BULB

Emitted Color
Part Number
AB-xxxx
Material

Wave
Length
Typ.
£fd(nm)
Bases
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous Intensity
(mcd)
Polarity

InGaN
470
Festoon
12
55
1500
DC


AB-T26123G112VD31-CF

 InGaN
525
5000
  AB-T26123Y112VD31-CF AlGaInP
590
3500
  AB-T26123R112VD31-CF AlGaInP
625
3500
  AB-T26123W112VD31-CF InGaN
10000K
5000
  AB-T26123SW12VD31-CF InGaN

3000K
5000

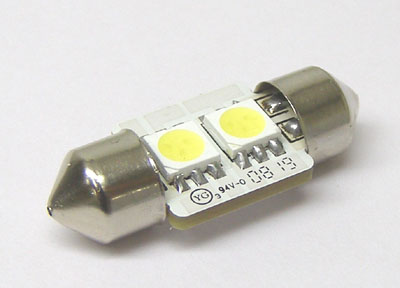

  31mm FESTOON BULB

Emitted Color
Part Number
AB-xxxx
Material

Wave
Length
Typ.
£fd(nm)
Bases
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous Intensity
(mcd)
Polarity

InGaN
470
Festoon
12
35
3000
DC

InGaN
525
10000

AlGaInP
590
6000

AlGaInP
625
6000

InGaN
X:0.31 Y:0.32
9000
  AB-P06481SW12VD31-CF InGaN
X:0.45 Y:0.41
7000
12V to 28V are available.

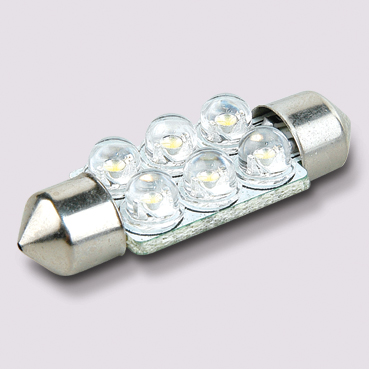

  36mm FESTOON BULB

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length
Typ.
£fd(nm)
Bases
Operate Voltage
(V)
Forward
Current @Vin(mA)
Luminous Intensity
(mcd)
Polarity
  AB-T26123B112VD36-CF InGaN
470
Festoon
12
55
1500
DC
  AB-T26123G112VD36-CF InGaN
525
5000
  AB-T26123Y112VD36-CF AlGaInP
590
3500
  AB-T26123R112VD36-CF AlGaInP
625
3500
  AB-T26123W112VD36-CF
InGaN
10000K
5000
  AB-T26123SW12VD36-CF InGaN
3000K
5000

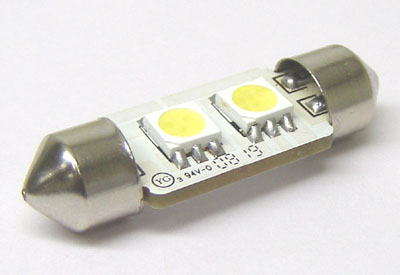

  36mm FESTOON BULB

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length
Typ.
£fd(nm)
Bases
Operate Voltage
(V)
Forward
Current @Vin(mA)
Luminous Intensity
(mcd)
Polarity

InGaN
470
Festoon
12
35
3000
DC

InGaN
525
10000

AlGaInP
590
6000

AlGaInP
625
6000
  AB-P06481W112VD36-CF
InGaN
10000K
9000
  AB-P06481SW12VD36-CF InGaN
3000K
7000
  12V to 28V are available.

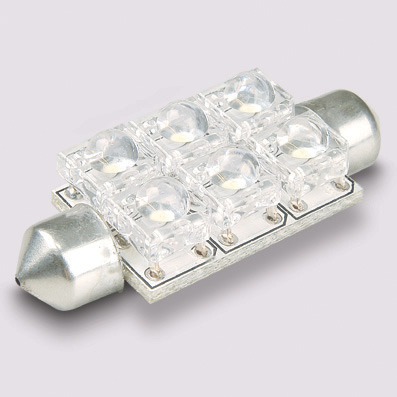

  41mm FESTOON BULB

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length
Typ.
£fd(nm)
Bases
Operate Voltage
(V)
Forward
Current @Vin(mA)
Luminous Intensity
(mcd)
Polarity
  AB-T36123B112VD41-CF InGaN
470
Festoon
12
65
2200
DC
  AB-T36123G112VD41-CF InGaN
525
7500
  AB-T36123Y112VD41-CF AlGaInP
590
5300
  AB-T36123R112VD41-CF AlGaInP
625
5300
  AB-T36123W112VD41-CF
InGaN
10000K
7500
  AB-T36123SW12VD41-CF InGaN
3000K
7500

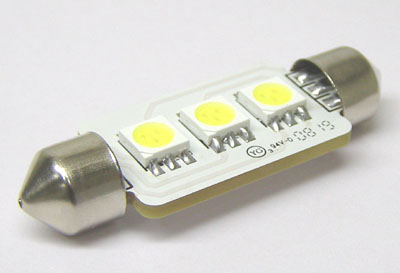

  41mm FESTOON BULB

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length
Typ.
£fd(nm)
Bases
Operate Voltage
(V)
Forward
Current @Vin(mA)
Luminous Intensity
(mcd)
Polarity

InGaN
470
Festoon
12
35
3500
DC

InGaN
525
12000

AlGaInP
590
7500

AlGaInP
630
7500
  AB-0651W0-12VD-CF-B
InGaN
X:0.31
Y:0.32
13000
  AB-0651SW0-12VD-CF-B InGaN
X:0.45
Y:0.41
9500
  12V to 28V are available.

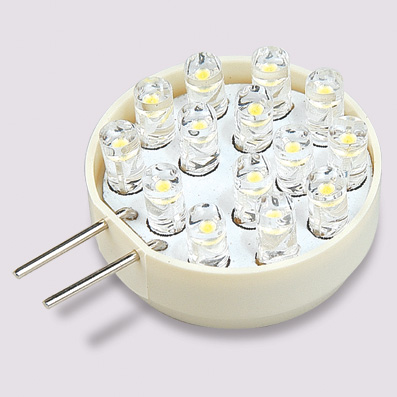

G4 LED BULB
  G4 BASE

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length
Typ.
£fd(nm)
Bases
Operate Voltage
(V)
Forward
Current @Vin(mA)
Luminous Intensity
(mcd)
Polarity

InGaN
470
G4
12
40
5000
AC/DC

InGaN
525
15000

AlGaInP
590
12
40
2000
AC/DC

AlGaInP
590
4500
  AB-143R0-12V0-G40-B
AlGaInP
630
12
40
2000
AC/DC
  AB-143TR-12V0-G40-B
AlGaInP
630
4500
  AB-143W0-12V0-G40-B
InGaN
X:0.31
Y:0.32
12
40
4000
AC/DC
  AB-143SW-12V0-G40-B
InGaN
X:0.45
Y:0.41

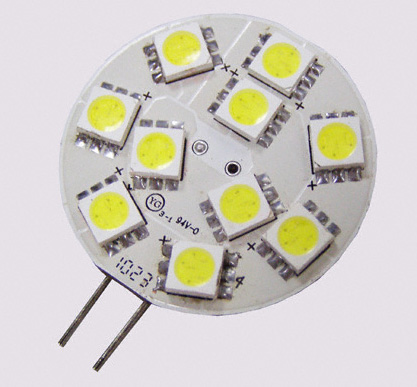

  TOP G4 BASE

Emitted Color
Part Number
AB-xxxx
Material
CCT(K )
Bases
Operate Voltage
(V)
Forward
Current @Vin(mA)
Luminous Intensity IF= 100 mA
(cd)
Polarity
  AB-10TW0G4S-PCB
InGaN
6000K
G4
12/24
100/90
55
DC
  AB-10TSW0G4S-PCB
InGaN
3000K
53
