CHINA PATENT NO.453719

SINGLE LAMP LED BULB

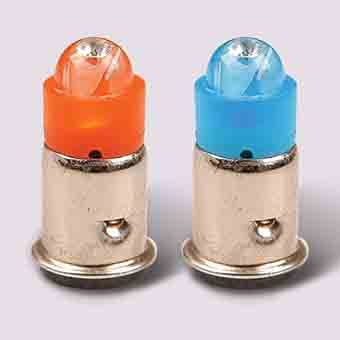

MIDGET FLANGED BASE SERIES
  MF BASE

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length fd(nm)
Bases
Model
Operate Voltage(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Min.
Typ.

InGaN
470
MF
6
20
300
400
DC
12
20
24
15
230
300

InGaN
525
6
20
390
520
DC
12
20
400
530
24
15
270
360

AlGaInP
590
6
20
760
1000
DC
12
20
700
900
24
15
430
570

AlGaInP
630
6
20
760
1000
DC
12
20
700
900
24
15
430
570

InGaN
Chromaticity
Coordinates
X:0.31
Y:0.32
6
20
500
600
DC
12
20
24
15
370
480

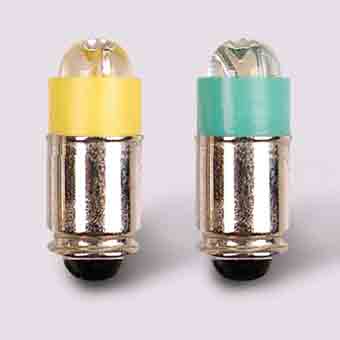

MIDGET GROOVED BASE SERIES
  MG BASE

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length fd(nm)
Bases
Model
Operate Voltage(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Min.
Typ.

InGaN
470
MG
6
20
300
400
DC
12
20
24
15
230
300

InGaN
525
6
20
390
520
DC
12
20
400
530
24
15
270
360

AlGaInP
590
6
20
760
1000
DC
12
20
700
900
24
15
430
570

AlGaInP
630
6
20
760
1000
DC
12
20
700
900
24
15
430
570

InGaN
Chromaticity
Coordinates
X:0.31
Y:0.32
6
20
500
600
DC
12
20
24
15
370
480
