CHINA PATENT NO.453719

BA15S BASE LED BULB

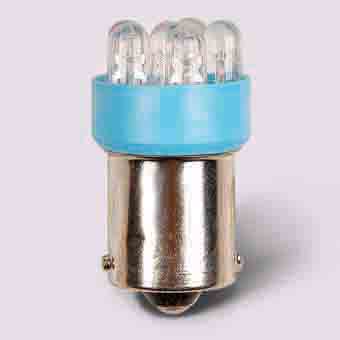

  6 LAMPS (£X5) LED BULB

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length £fd(nm)
Bases
Model
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(cd)
Polarity
Min.
Typ.
  AB-065B40-12V0-B1G-0
InGaN
470
BA15S
12
30
12
18

AC/DC

AB-065B40-24V0-B1G-0
24
20
10
15
  AB-065G30-12V0-B1G-0
InGaN
525
12
30
30
40
AC/DC
AB-065G30-24V0-B1G-0
24
20
25
35
  AB-065TY0-12V0-B1G-0
AlGaInP
590
12
30
30
45
AC/DC
AB-065TY0-24V0-B1G-0
24
20
25
40
  AB-065TR0-12V0-B1G-0
AlGaInP
630
12
30
30
40
AC/DC
AB-065TR0-24V0-B1G-0
24
20
25
35
  AB-065W30-12V0-B1G-0
InGaN
X:0.31
Y:0.32
12
30
15
20
AC/DC
AB-065W30-24V0-B1G-0
24
20
10
15

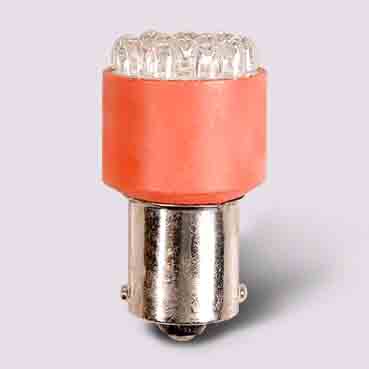

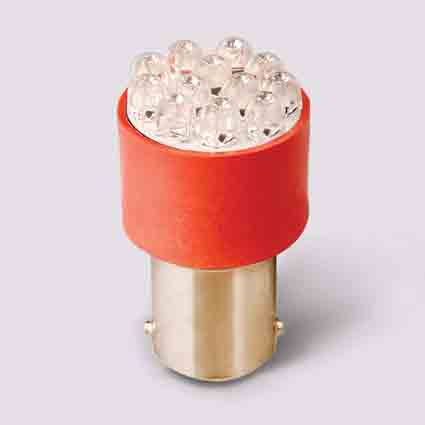

  12 LAMPS (£X4.6) LED BULB

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length £fd(nm)
Bases
Model
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Min.
Typ.

InGaN
470
BA15S
12
65
6500
8000

AC/DC

24
5500
7000

InGaN
525
12
7000
8500
AC/DC
24
6000
7500

AlGaInP
590
12
9000
11000
AC/DC

AB-12ATYD-24V0-B1G-0

24
8500
10000

AlGaInP
630
12
9500
11000
AC/DC
24
9000
10000

InGaN
X:0.31
Y:0.32
12
4500
6500
AC/DC
24
4000
6000


All rights reserved please not copy renewal date 98-3-2
