CHINA PATENT NO.453719

BAY15D BASE LED BULB

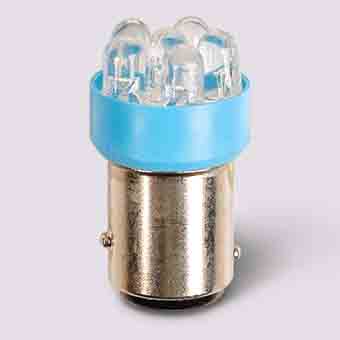

  6 LAMPS (£X5) LED BULB
¡¯Used with stoplight

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length £fd(nm)
Bases
Model
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(cd)
Polarity
Typ.

InGaN
470
BAY15D
12
60 / 120
30 / 55
DC
24
30 / 80
26 / 48

InGaN
525
12
60 / 120
55 / 70
DC
24
30 / 80
50 / 65

AlGaInP
590
12
60 / 120
45 / 60
DC
24
30 / 80
40 / 55

AlGaInP
630
12
60 / 120
45 / 60
DC
24
30 / 80
40 / 55

InGaN
X:0.31
Y:0.32
12
60 / 120
45 / 55
DC
24
30 / 80
40 / 50

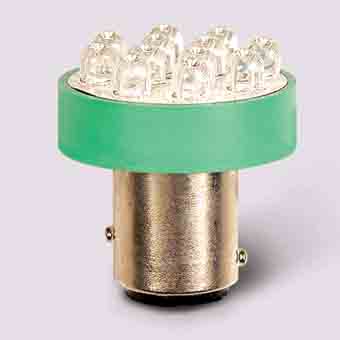

  12 LAMPS (£X4.6) LED BULB
¡¯Used with stoplight

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length £fd(nm)
Bases
Model
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Typ.

InGaN
470
BAY15D
12
90 / 200
8000 / 16000
DC

InGaN
525
BAY15D
12
90 / 200
7500 / 15000
DC

AlGaInP
590
BAY15D
12
110 / 250
11000 / 21000
DC


AB-12ATRD-12VD-B3G-0

AlGaInP
630
BAY15D
12
110 / 250
11000 / 20000
DC

InGaN
X:0.31
Y:0.32
BAY15D
12
90 / 200
6500 / 11500
DC

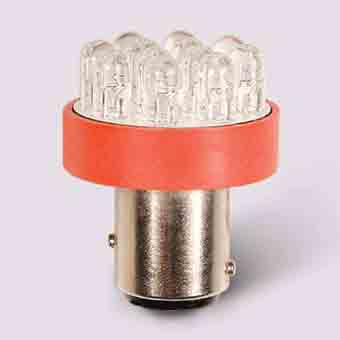

  12 LAMPS (£X5) LED BULB
¡¯Used with stoplight

Emitted Color
Part No.
Material

Wave
Length £fd(nm)

Base
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(cd)
Polarity
Typ.

InGaN
470
BAY15D
12
90 / 200
30 / 50
DC
  AB-125G30-12VD-B3G-0
InGaN
525
BAY15D
12
90 / 200
95 / 150
DC
  AB-125TYA-12VD-B3G-0
AlGaInP
590
BAY15D
12
110 / 250
95 / 170
DC


AB-125TRA-12VD-B3G-0

AlGaInP
630
BAY15D
12
110 / 250
95 / 150
DC
  AB-125W3A-12VD-B3G-0
InGaN
X:0.31
Y:0.32
BAY15D
12
90 / 200
35 / 60
DC


All rights reserved please not copy renewal date 98-3-2
